當前位置：首頁  產品中心 智能式端子機 |
|

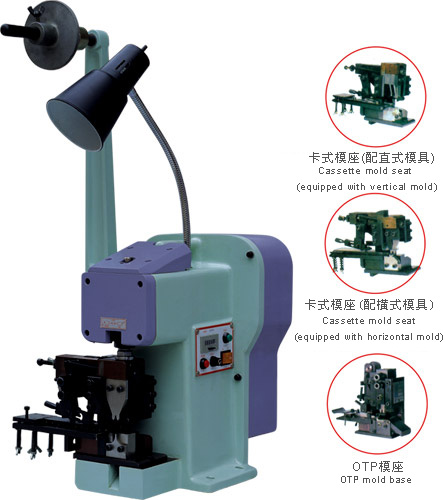

YG-1.5A 連續端子半自動壓著機
{$產品視頻$}
特點說明
- 本機采用滾輪式離合器，靜音、速度快，定點準，操作簡單。可配合多種廠牌之
直、橫式模具，通用性大，只需更換底座及中仁即可。
- 易於調整壓著深度，只需松開螺絲即可由上方微調。出力1.5TON，可廣泛使用於
各種端子的鉚合出力足。
Explanation of features
- It adopts rolling wheel clutch, with the advantages of no noise, high speed,
correct positioning, and simple operation. It is applicable to various vertical and
horizontal molds after simple exchange of base and core.
- It can easily adjust the pressing depth through upper micro-adjustment after
screw loosening. Force is 1.5TON. It is widely used in riveting force feet of
various terminals.
技術參數Technical parameters
| 機 型 |
Mode |
YG-1.5A |
| 能 力 |
Capacity |
1.5Ton |
| 電 源 |
Impulsive force |
AC 110/220V 50Hz/60Hz |
| 馬 力 |
Horsepower |
120W |
| 沖 程 |
Stroke |
30mm |
| 送 距 |
Maximum feed |
32mm |
| 操作方式 |
Operation mold |
單動腳踏開關 Single-action foot switch |
| 外觀尺寸 |
External dimensions |
250mmX370mmX420mm |
| 重 量 |
Weight |
70Kg |
|
