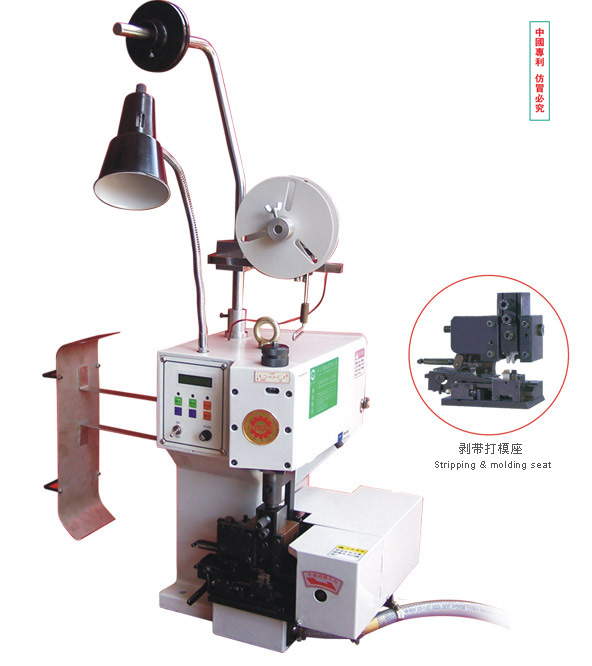

YG-1.8TS 數控式連續剝皮打端機
| 適配加工電線線徑范圍 Applicable scope of processing wire diameter | | mm2 | 0.013 | 0.03 | 0.05 | 0.08 | 0.1 | 0.2 | 0.3 | 0.5 | 0.9 | 1.3 | 2.0 | 3.0 | 5.0 | | AWG | 36 | 32 | 30 | 28 | 26 | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | | | 線徑范圍 | | | | |
特點說明
電線剝皮及端子壓著一個動作完成。卡式模座和剝皮系統的組合使機臺達到連慣動作。 剝皮系統采用步進電機驅動，瞬間啟動能產生高扭矩效果。 剝皮系統設計有自動、手動及自動回位等功能。 待機時間可調整：可視線材及端子需求而來調整，端子鉚合完成之后，剝皮座回位之時間。 使用凸輸方式完成剝皮及進刀深度，穩定性高。 端子鉚合松緊度可由機臺上方微調旋轉調整， 調整精度每格 0.02mm 。 有抽取線皮屑及退料裝置之設計
Explanation of features The wire stripping and terminal pressing are completely together. The combination of cassette mold seat and stripping system can manage continuous operation. The stripping system adopts stepping motor driving, and the instant starting can produce effect of high torque. The stripping system has the functions of automatic return, manual return, and automatic return, etc. The stand-by time can be adjusted. Adjust the return time of stripping seat after terminal riveting according to requirements of wire material and terminal. Manage stripping and cutting depth through convex transmission, to ensure high stability. The terminal riveting tension can be adjusted through rotation of upper part of the machine, with the adjustment precision of 0.02mm/grade. It can draw wire waste and returning equipment.
技術參數Technical parameters | 型號 | Model | YG-1.8TS | | 作業能力 | Work capacity | 電線的剝皮以及端子壓著的連貫作業 Uninterrupted wire stripping and terminal pressing | | 電 源 | Power | AC 110/220V 50Hz/60Hz 單相 AC 110/220V 50Hz/60Hz single-phase | | 馬 達 | Motor | 端子機1/3HP 剝皮部分步進馬達 40W Terminal machine 1/3HP; stepping motor in stripping part: 40W | | 控制方式 | Control mode | 可自動剝皮打端子、可單獨壓端子、可單獨剝皮 It can manage automatic stripping and terminal pressing, separate terminal pressing and separate stripping. | | 能 力 | Capacity | 1.8Ton | | 沖 程 | Stroke | 30mm | | 剝皮長度 | Stripping length | 2--6mm | | 空氣壓力 | Air pressure | 5--8kgf(需使用清潔干燥空氣) 5-8kgf (need clean and dry air) | | 外觀尺寸 | External dimensions | 440x500x2800mm | | 重 量 | Weight | 90kg |
|
